Scaffolding

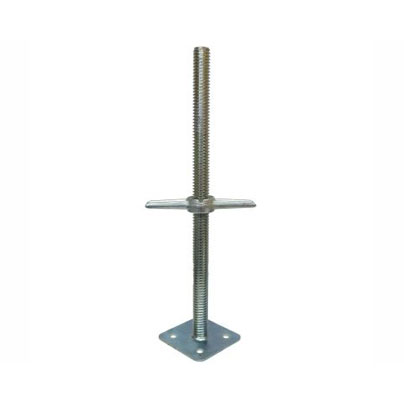

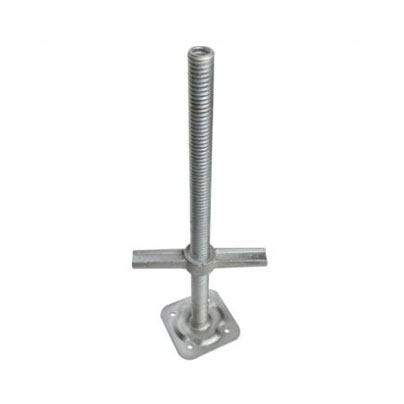

Adjustable base jack has a very sturdy steel stem of 35mm specified diameter with a nut restraint to guarantee that the stem has least engagement into the Standard of 150mm. The Adjustable base jack can engage twin 100mm. wide bearers. Pipe Od 38mm, 35mm, 34mm

Pipe Od 38mm, 35mm, 34mm
Size : 450mm, 500mm, 610mm, 700mm

460 x 32 mm, 670 x 32 mm, 750 x 32 mm,460 x 36 mm, 670 x 36 mm, 750 x 36 mm, Plate - 150 x 150 x 6, 120 x 120 x 5 mm Finish - Self Finish or Zinc Plated Pipe Od 35mm, 34mm

Pipe Od 38mm, 35mm, 34mm
Size : 450mm, 500mm, 610mm, 700mm

Pipe Od 38mm, 35mm, 34mm
Size : 450mm, 500mm, 610mm
Finish: Self Finish, Zinc Plated

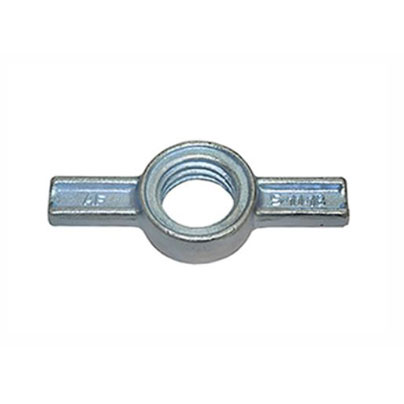

Drop Forged Jack Nut Size-38mm Weight : 0.40 kg,Size-34mm
Weight : kg
Finish: Self Finish, Zinc Plated

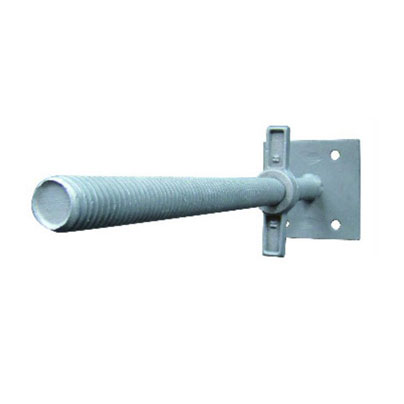

450 x 38 x 4 mm 600 x 38 x 4 mm 660 x 38 x 4 mm 760 x 38 x 4 mm Plate - 150 x 150 x 5 mm Finish: Self Finish,Zinc Plated

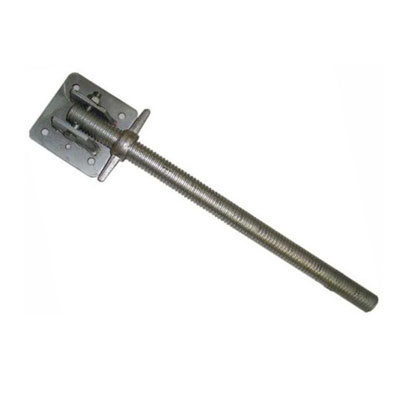

Choose between different height-adjustable base plates with sturdy and self-cleaning round threads, with colour and notch markings to provide protection against overwinding. Swivelling base plates are available for sloping ground or uneven surfaces, e.g. in combustion chambers or ship hulls.

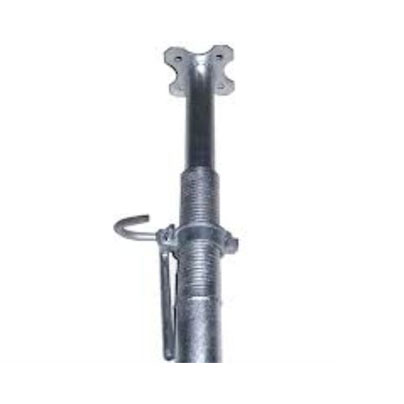

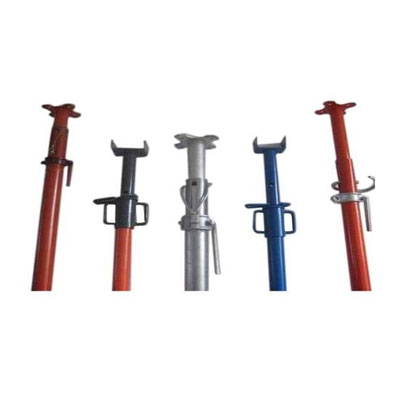

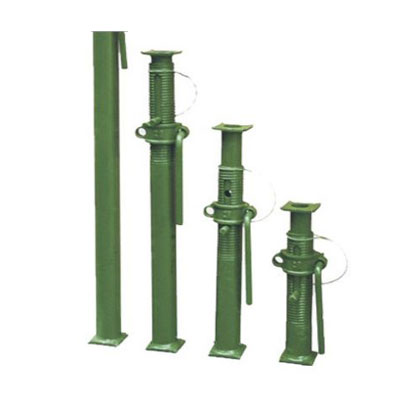

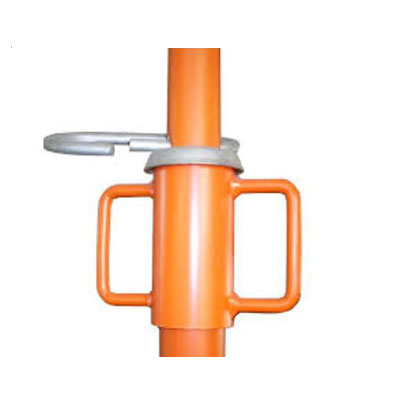

Outer Tube 60x3mm; Inner tube 48.3x3mm
EPS-0100 1.07(Size Closed) 1.82(Size Open) 11.00 WT.(kg)
EPS-0101 1.75(Size Closed) 3.12(Size Open) 16.70 WT.(kg)
EPS-0102 1.98(Size Closed) 3.35(Size Open) 18.40 WT.(kg)
EPS-0103 2.59(Size Closed) 3.95(Size Open) 20.20 WT.(kg)
EPS-0104 3.20(Size Closed) 4.87(Size Open) 24.20 WT.(kg)

Outer Tube 60x2mm; Inner tube 48.3x2mm
EPS-0200 1.50(Size Closed) 2.50(Size Open) 9.60 WT.(kg)
EPS-0201 1.75(Size Closed) 3.00(Size Open) 11.00 WT.(kg)
EPS-0202 2.00(Size Closed) 3.50(Size Open) 12.50 WT.(kg)
EPS-0203 2.40(Size Closed) 3.90(Size Open) 13.20 WT.(kg)
EPS-0204 2.50(Size Closed) 4.00(Size Open) 13.60 WT.(kg)
EPS-0205 3.00(Size Closed) 5.00(Size Open) 15.80 WT.(kg)

Outer Tube 57x2mm; Inner tube 48.3x2mm
EPS-0300 1.70(Size Closed) 3.10(Size Open) 10.70 WT.(kg)
EPS-0301 2.00(Size Closed) 3.60(Size Open) 13.20 WT.(kg)
EPS-0302 2.20(Size Closed) 4.00(Size Open) 15.70 WT.(kg)

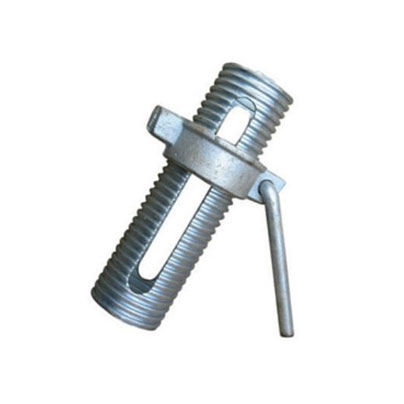

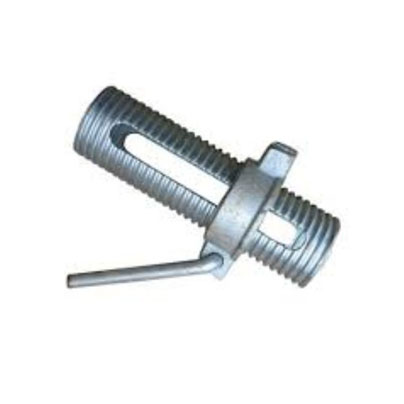

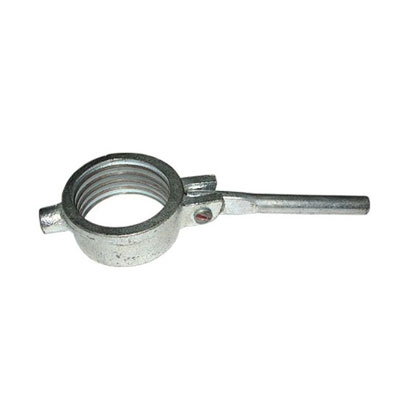

Weight : 1.28 kg

Dia : 60mm x 3.6 mm x 205 mm Weight : 2.30 kg

Dia : 60mm x 2.5 mm x 205 mm Weight : 1.40 kg

SF-1513-10F Weight : 0.490 kg.

Hot Dip Galvanised / Powder Coating / Electro Zinc / Painted

Hot Dip Galvanised / Powder Coating / Electro Zinc / Painted Size: SF-1814-05 12 diameter 0.320 Kg

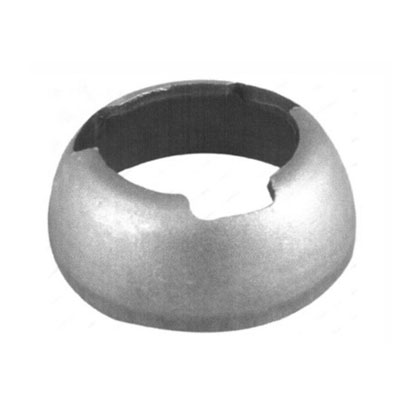

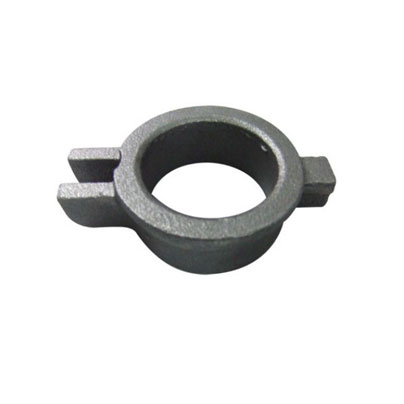

Drop Forged Top Cup
Weights available - 430/440 Grams
Self Finish
Std Packing - 50 Pcs/Bag, 2000 Pcs/Pallet,br/> MCI
(Malleable Cast Iron) Top Cup Weights available - 400/410 Grams,also available in 2 mg and 3 mg

Pressed Bottom Cup Self Finish Sizes (mm) : 30 x 5, 29 x 4

Drop Forged Ledger Blade
Weights available - 200, 225, 240 grams
Std Packing - 100 Pcs/Bag, 4000 Pcs/Pallet
Self Finish
Also Available without Hole(open Type)

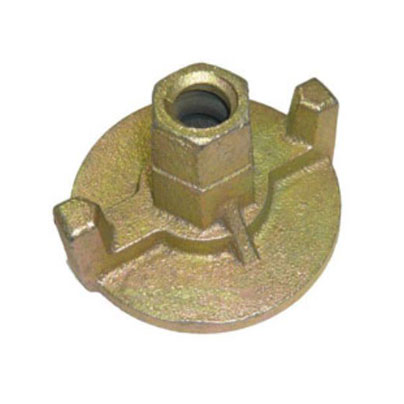

Made out of Cast Iron Safe Working Load : 90 kN

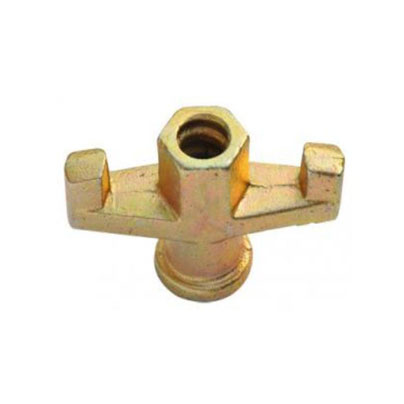

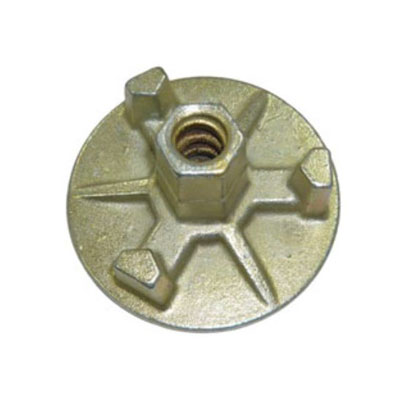

Wing Nut available in 15/17
Finish : Yellow and Zinc Plated

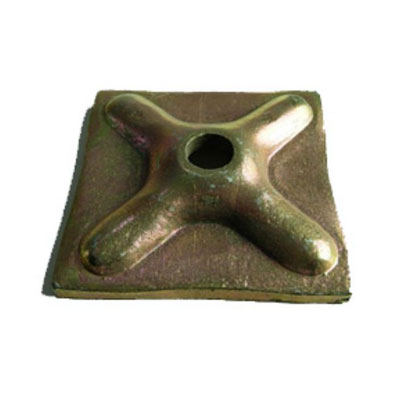

Size : 120 x 120 x 5 / 10 mm
Weight : 0.520 / 1.100 KG

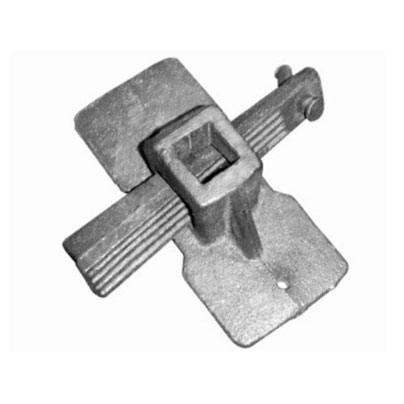

Casted Body & Forged Wedge Size : Ø 4 - 10 mm Rapid Clamp also available in casted body & Casted Wedge

Material : Malleable Cast Iron Weight : 0.540 KG

Material : Mild Steel, Size : 100 / 50 mm, Weight : 0.450 / 0.210 KG

Material : Malleable Cast Iron,
Size : Ø 70 / 100 mm, Weight : 0.540 KG
Size : Ø 110 mm, Weight : KG

Material : Malleable Cast Iron,
Size : Ø 70 / 100 mm,Weight :0.540 KG
Size : Ø 110 mm,Weight : KG
Size : Ø 120 mm,Weight : KG
Finish : White Zinc Plated

Material : Mild Steel, Size : 100 / 50 mm, Weight : 0.450 / 0.210 KG
